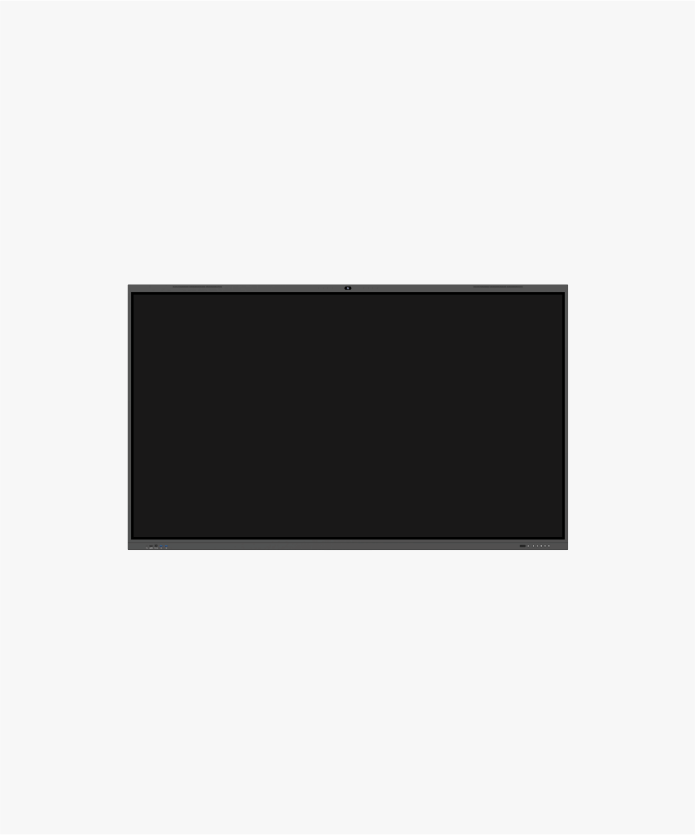

KT Series
Interactive Display are intuitive 4K touchscreens, perfect for dynamic collaboration, presentations, and interactive learning.
65 Inch
75 Inch
86 Inch
92 Inch
98 Inch
4K Resolution
40 Multi Touch Points
HD Camera
Wireless Sharing Multi-Screen
Dual OS Windows & Android

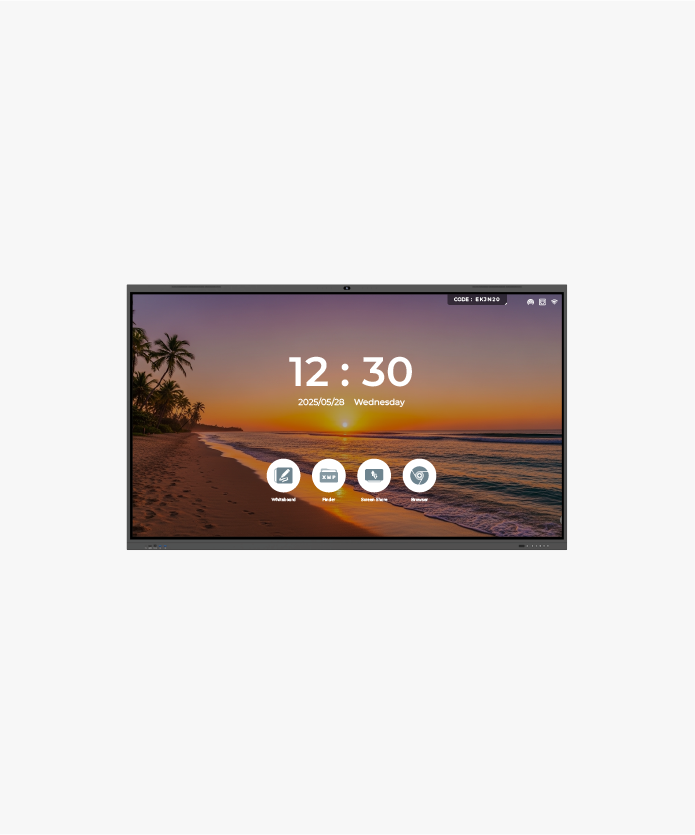

Immersive Experience, One Touch Away
Crystal-clear 4K UHD display offers an ultimate visual experience. Perfect for teaching and meetings, it sharpens details in charts, photos, and videos on large screens Interactive Display.
3840*2160
Wide Viewing Angle
Rich & Colorful
Aspect Ratio
Interactive Display Built-in HD Camera & Mic Array
50-80MP HD Camera:
Interactive Display Features AI mode with gesture switching, sound source
localization, and voice enhancement.
8-Array Microphones:
8m, 0-180° pickup with echo cancellation, noise
suppression, and gain compensation.
Specification
MT-650KT
MT-750KT
MT-860KT
MT-920KT
MT-980KT
MT-650KT
| Refresh Rate | 60Hz |
| Life Time | 30,000 hrs (min.) |
| Color Gamut (% NTSC) | 72% (typ.) |
| View Area (mm) | 1428.48(H)x803.52(V) |
| Display Colors | 1.07B (10bit) |
| RAM | 4-8 GB |
| ROM | 64/128 |
| OS Version | Android 13.0 |
| Power Requirements | AC 100V ~ 240 V, 50/60 Hz |
| Power Cons. (w/o OPS) | 266W |
| Standby | 0.5W |
| Audio Output Power | 2x20W/6Ω |
| Interface | HDMI IN x2, LAN x2, USB3.0 x1, TOUCH x1, RS232-IN x1, MIC IN x1, Type-C x1, USB2.0 x1, USB3.0 x2, AUDIO OUT x1, HDMI OUT x1 |
| Operating Frequency | 2.4GHz/5GHz |
| Wi-Fi Standard | Support |
| Bluetooth | Support |
| Camera Pixels | 50MP |
| Camera Field of View (FOV) | D-FOV 136° |
| Microphone Quantity | 8-mic |
| Max Touch Points | 40 (40 Points) |
| Interpolation Resolution | 32767*32767 |
| Touch Accuracy | Within 90% touch area ±1.5mm (±1.5mm) |
| Response Time | ≤5ms |
| Voltage | DC+5V±5% |
| Power Consumption | ≤2W |
| Operations OS | Android |
| Supported System | Windows10/Windows8/Windows7/Windows XP/Android/Linux/Mac OS X/Chrome |
| Product Size (W x D x H) | 1484mm x 87.4mm x 911.6mm |
| Package Size (W x D x H) | 1640mm x 185mm x 1010mm |
| Op. Temp/Hum/Alt. | 0 ~ +40°C / 20% ~ 80% RH Non-Condensing / ≤5000m |
MT-750KT
| Product Name | MT-750KT |
| LCD Size | 75″ |
| Backlight Type | D-LED |
| Resolution | 3840×2160 pixels |
| Brightness | 400 cd/m² (min.) 450 cd/m² (typ.) |
| Contrast Ratio | 1200:1 (typ.) |
| Response Time | 8ms (typ.) |
| Pixel Pitch | 0.4296(H)x0.4296(V) |
| Viewing Angle | 178°(H) / 178°(V) |
| Refresh Rate | 60Hz |
| Life Time | 30,000 hrs (min.) |
| Color Gamut (% NTSC) | 72% (typ.) |
| View Area (mm) | 1649.664(H)x927.936(V) |
| Display Colors | 1.07B (10bit) |
| RAM | 4-8 GB |
| ROM | 64/128 |
| OS Version | Android 13.0 |
| Power Requirements | AC 100V ~ 240 V, 50/60 Hz |
| Power Cons. (w/o OPS) | 305W |
| Standby | 0.5W |
| Audio Output Power | 2x20W/6Ω |
| Interface | HDMI IN x2, LAN x2, USB3.0 x1, TOUCH x1, RS232-IN x1, MIC IN x1, Type-C x1, USB2.0 x1, USB3.0 x2, AUDIO OUT x1, HDMI OUT x1 |
| Operating Frequency | 2.4GHz/5GHz |
| Wi-Fi Standard | Support |
| Bluetooth | Support |
| Camera Pixels | 50MP |
| Camera Field of View (FOV) | D-FOV 136° |
| Microphone Quantity | 8-mic |
| Max Touch Points | 40 (40 Points) |
| Interpolation Resolution | 32767*32767 |
| Touch Accuracy | Within 90% touch area ±1.5mm (±1.5mm) |
| Response Time | ≤5ms |
| Voltage | DC+5V±5% |
| Power Consumption | ≤2W |
| Operations OS | Android |
| Supported System | Windows10/Windows8/Windows7/Windows XP/Android/Linux/Mac OS X/Chrome |
| Product Size (W x D x H) | 1705mm x 87.4mm x 1036mm |
| Package Size (W x D x H) | 1860mm x 185mm x 1140mm |
| Op. Temp/Hum/Alt. | 0 ~ +40°C / 20% ~ 80% RH Non-Condensing / ≤5000m |
MT-860KT
| Product Name | MT-860KT |
| LCD Size | 86″ |
| Backlight Type | D-LED |
| Resolution | 3840×2160 pixels |
| Brightness | 400 cd/m² (min.) 450 cd/m² (typ.) |
| Contrast Ratio | 1200:1 (typ.) |
| Response Time | 8ms (typ.) |
| Pixel Pitch | 0.4935(H)x0.4935(V) |
| Viewing Angle | 178°(H) / 178°(V) |
| Refresh Rate | 60Hz |
| Life Time | 30,000 hrs (min.) |
| Color Gamut (% NTSC) | 72% (typ.) |
| View Area (mm) | 1895.04(H)x1065.96(V) |
| Display Colors | 1.07B (10bit) |
| RAM | 4-8 GB |
| ROM | 64/128 |
| OS Version | Android 13.0 |
| Power Requirements | AC 100V ~ 240 V, 50/60 Hz |
| Power Cons. (w/o OPS) | 382W |
| Standby | 0.5W |
| Audio Output Power | 2x20W/6Ω |
| Interface | HDMI IN x2, LAN x2, USB3.0 x1, TOUCH x1, RS232-IN x1, MIC IN x1, Type-C x1, USB2.0 x1, USB3.0 x2, AUDIO OUT x1, HDMI OUT x1 |
| Operating Frequency | 2.4GHz/5GHz |
| Wi-Fi Standard | Support |
| Bluetooth | Support |
| Camera Pixels | 50MP |
| Camera Field of View (FOV) | D-FOV 136° |
| Microphone Quantity | 8-mic |
| Max Touch Points | 40 (40 Points) |
| Interpolation Resolution | 32768 x 32768 |
| Touch Accuracy | Within 90% touch area ±1.5mm (±1.5mm) |
| Response Time | ≤5ms |
| Voltage | DC+5V±5% |
| Power Consumption | ≤2W |
| Operations OS | Android |
| Supported System | Windows10/Windows8/Windows7/Windows XP/Android/Linux/Mac OS X/Chrome |
| Product Size (W x D x H) | 1950.4mm x 87.4mm x 1174mm |
| Package Size (W x D x H) | 2095mm x 185mm x 1275mm |
| Op. Temp/Hum/Alt. | 0 ~ +40°C / 20% ~ 80% RH Non-Condensing / ≤5000m |
MT-920KT
| Product Name | MT-920KT |
| LCD Size | 92″ |
| Backlight Type | D-LED |
| Resolution | 5120×2160 pixels |
| Brightness | 450 cd/m² (min.) 500 cd/m² (typ.) |
| Contrast Ratio | 1200:1 (typ.) |
| Response Time | 14ms (typ.) |
| Pixel Pitch | 0.41835(H)x0.41835(V) |
| Viewing Angle | 178°(H) / 178°(V) |
| Refresh Rate | 60Hz |
| Life Time | 30,000 hrs (min.) |
| Color Gamut (% NTSC) | 85% (typ.) |
| View Area (mm) | 2141.952(H)x903.636(V) |
| Display Colors | 1.07B (10bit) |
| RAM | 8-16 GB |
| ROM | 128/256GB |
| OS Version | Android 13.0 |
| Power Requirements | AC 100V ~ 240 V, 50/60 Hz |
| Power Cons. (w/o OPS) | 680W |
| Standby | 0.5W |
| Audio Output Power | 2x20W/6Ω |
| Interface | HDMI IN x2, LAN x2, USB3.0 x1, TOUCH x1, RS232-IN x1, MIC IN x1, Type-C x1, USB2.0 x1, USB3.0 x2, AUDIO OUT x1, HDMI OUT x1 |
| Operating Frequency | Support |
| Wi-Fi Standard | Support |
| Bluetooth | 50MP |
| Camera Pixels | – |
| Camera Field of View (FOV) | – |
| Microphone Quantity | – |
| Max Touch Points | 40 (40 Points) |
| Interpolation Resolution | 32768 x 32768 |
| Touch Accuracy | Within 90% touch area ±1.5mm (±1.5mm) |
| Response Time | ≤7ms |
| Voltage | DC+5V±5% |
| Power Consumption | ≤2.5W |
| Operations OS | Android |
| Supported System | Windows10/Windows8/Windows7/Windows XP/Android/Linux/Mac OS X/Chrome |
| Product Size (W x D x H) | 2201.4mm x 87.9mm x 995.3mm |
| Package Size (W x D x H) | 2470mm x 325mm x 1280mm |
| Op. Temp/Hum/Alt. | 0 ~ +40°C / 20% ~ 80% RH Non-Condensing / ≤5000m |
MT-980KT
| Product Name | MT-980KT |
| LCD Size | 98″ |
| Backlight Type | D-LED |
| Resolution | 3840×2160 pixels |
| Brightness | 400 cd/m² (min.) 450 cd/m² (typ.) |
| Contrast Ratio | 1200:1 (typ.) |
| Response Time | 8ms (typ.) |
| Pixel Pitch | 0.5622(H)x0.5622(V) |
| Viewing Angle | 178°(H) / 178°(V) |
| Refresh Rate | 60Hz |
| Life Time | 30,000 hrs (min.) |
| Color Gamut (% NTSC) | 70% (typ.) |
| View Area (mm) | 2158.85(H)x1214.35(V) |
| Display Colors | 1.07B (10bit) |
| RAM | 4-8 GB |
| ROM | 32GB/64GB |
| OS Version | Android 13.0 |
| Power Requirements | AC 100V ~ 240 V, 50/60 Hz |
| Power Cons. (w/o OPS) | 480W |
| Standby | 0.5W |
| Audio Output Power | 2x20W/8Ω |
| Interface | HDMI IN x2, LAN x2, USB3.0 x1, TOUCH x1, RS232-IN x1, MIC IN x1, Type-C x1, USB2.0 x1, USB3.0 x2, AUDIO OUT x1, HDMI OUT x1 |
| Operating Frequency | 2.4GHz/5GHz |
| Wi-Fi Standard | Support |
| Bluetooth | Support |
| Camera Pixels | 80MP |
| Camera Field of View (FOV) | D-FOV 103° |
| Microphone Quantity | 8-mic |
| Max Touch Points | 40 (40 Points) |
| Interpolation Resolution | 32768 x 32768 |
| Touch Accuracy | Within 90% touch area ±1.5mm (±1.5mm) |
| Response Time | ≤10ms |
| Voltage | DC+5V±5% |
| Power Consumption | ≤2W |
| Operations OS | Android |
| Supported System | Windows10/Windows8/Windows7/Windows XP/Android/Linux/Mac OS X/Chrome |
| Product Size (W x D x H) | 2230.8mm x121.7mmx1356.4mm |
| Package Size (W x D x H) | 2470mmx325mmx1611mm |
| Op. Temp/Hum/Alt. | 0 ~ +40°C / 20% ~ 80% RH Non-Condensing / ≤5000m |
